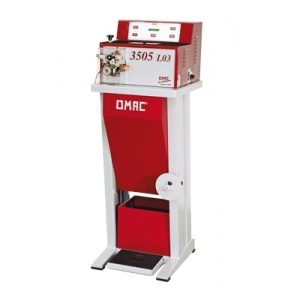

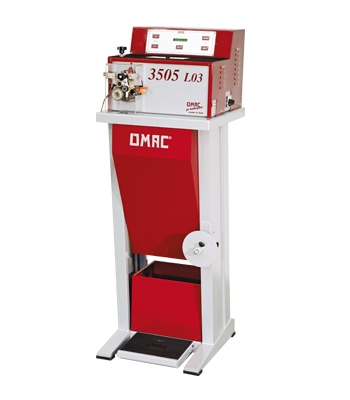

Profiling Machine 3505

omac-preparazione-profilatrice-3505_716210306
Brand: OmacOmac

Presentation.

Machines capabale of producing ribbed profiles of leather, eco-leather or similiar.

By only one operation this machine can: glue the ribbon, apply the string or cord, fold the tape on itself and trim it on its width, make cuts in the transverse direction.

  • Standard profile: steel core mm.2,2/2,5 – leather mm.0,7/0,8;
  • Panel for the speed adjusting and for memorising  the “manual” or “automatic” operation;
  • On request the machine can be equipped with special rollers and binders for different edges and eventually also for V cuts;
  • Production capacity about 750 mt./hour;
  • Voltage: 380 three phase or 220 single phase; the machine can be provided with different voltages. It is necessary to specify the voltage in the order.
  • Glue used: Thermoplastic;
  • Suggested temperature: Cº 150/160;
  • Consumption: 600 Watt;
  • Display for the set functions (Temperature, Speed, Functioning).
