For hot and cold stamping, with and without decorative ribbon

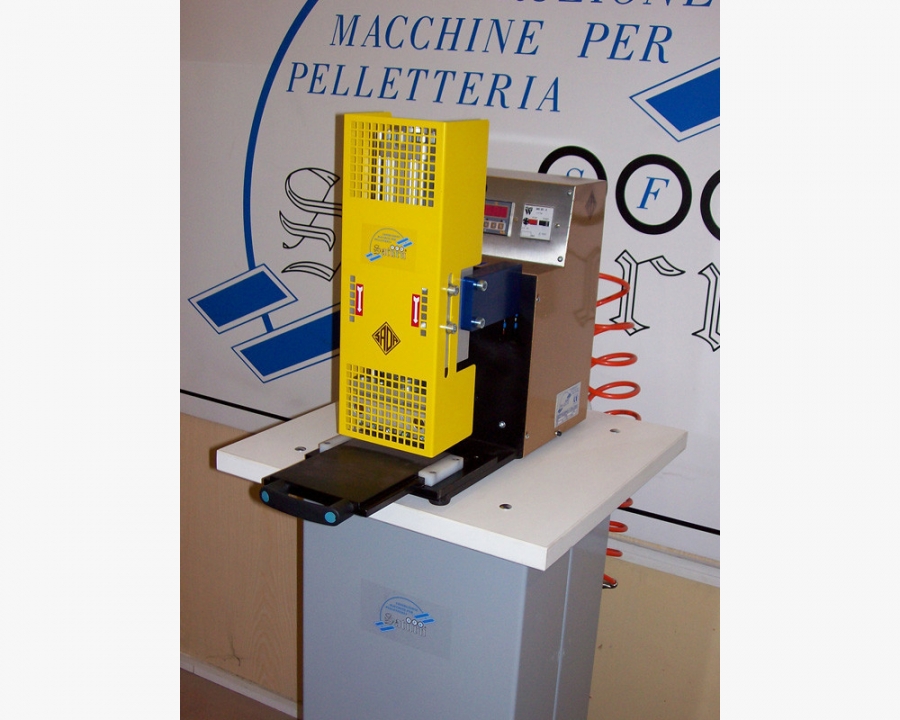

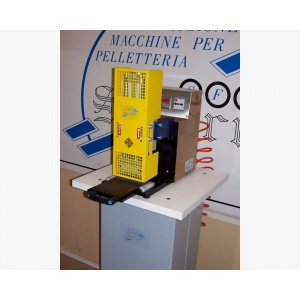

This machine, compact, fast and very simple to use was created for medium-high production, the small size also allows a great workability and space for medium-sized pieces.
It can hot and cold stamping, with and without decorative ribbon.
the considerable electric power output allows to apply printing plate of 120 x 80 mm.
the marking of the thrust generated by the pneumatic piston ensures a considerable force of 450 kg / cm² at a pressure of 6-8 atmospheres.
the descent and the ascent of the piston are assisted by spring mechanical brakes to sweeten the move.
Available with gold band, sliding top and bottom support or high support, foot pedal and double button. specifications Power 220 Volt Power 350 W exit No. 2 resistances 100W printing plate size: 120 x 80 mm. temperature adjustable from 20 to 250 ° C Timer operating cycle: from 0 to 10 seconds. working surface: 150 x 200 mm Drive pedal or double button. on the dimensions dimensions MOD. 152: (Only Head) 21 X 41 X 55 CM MOD. SB 152: (With Low Support) 100 X 85 X 120 CM MOD. 152 SA: (With High Support) 30 X 50 X 170 CM
